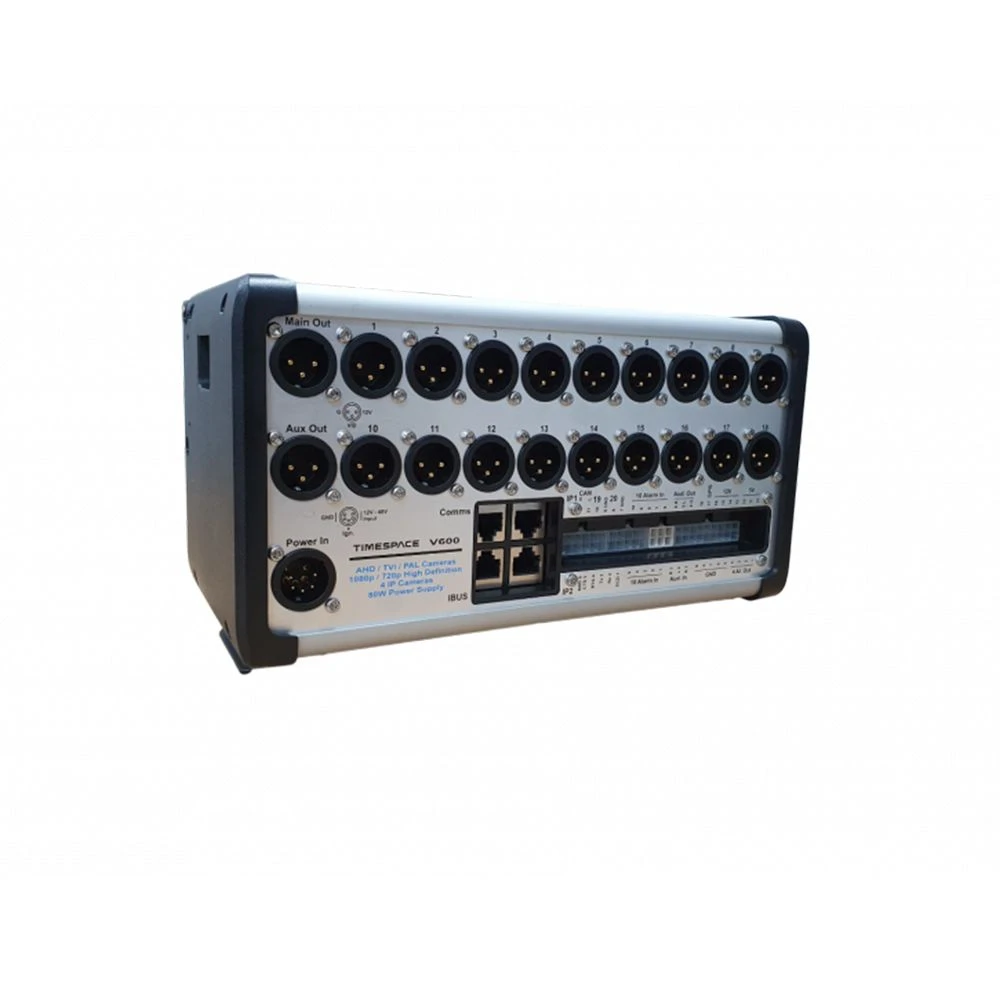

Timespace DVRV600 – 16 Channel Specification

Timespace has bought a 16 channel version of this analogue high-definition video recorder to market. The V600 AHD recorder provides operators with the flexibility to introduce the latest high-definition cameras to their vehicles.

With this innovative recorder, you will be able to utilise the latest in high-definition AHD or IP cameras. The V600 also allows up to 200fps whilst recording in standard definition or 100fps using high-definition.

One key feature of the V600 is that not only is it plug-and-play installation, but the dimensions are also the same as the V400 making it simple when replacing.

You can watermark your videos with SHA-265 authenticated digital signatures, embedded vehicle CAN data and GPS, time, date, speed and location, the V600 meets evidential requirements for court proceedings.

This digital video recorder is backward compatible with older systems where vehicle operators aren’t wanting to swap out cameras straight away.

V600 Specification
Feature	Capability	Feature	Capability
Video Inputs	Up to 16 AHD + 4 IP Channels	Global Image Rate	200 IPS
Audio Inputs	2, Selectable Line or Mic Level	Hard Disk Drive	1TB, 2TB or 4TB
Video Outputs	2 SD Monitors	Video Standard	PAL/NTSC/AHD/TVI/CVBS
Ethernet Ports	4 (Comms, IBUS, IP1, IP2)	Resolution for all Channels	Up to 1080p Full HD
Video Compression	H.264	Camera Installation	Plug and Play Install
G-Sensor	3 Axis	Approvals	E-Marked, CE Mark, R118, RoHS, WEEE
IP Rating	IP50	Operating Temperature	-10 to 50°C
Alarm Inputs	10 on the 10-Way Molex	Alarm Outputs	4 on the 18-Way Molex
Dimensions (mm) Including Mounting Plate	292(I) x 126(W) x 151(H)	CAN Engineering Data	Built-in

Benefits of IP Cameras

IP (Internet Protocol) cameras are powered over ethernet (PoE) and offer a far superior camera image quality/resolution to that of any other camera output. IP cameras can also be more cost-effective as they often cover a much wider range than that of an analogue camera. It would need up to four low-resolution analogue cameras to cover the same recording area as a single IP camera.

AHD vs IP (Click Image to Expand)

HD Resolution Capability

HD refers to high definition or 720p/1080p resolution, 1080p is known as Full HD. This resolution is a significant step up from 480p which can be seen in the image (on the right).

The first figure (1920) refers to horizontal pixels and the second figure (1080) denotes vertical resolution. The simple difference between HD and SD images is the number of pixels contained in the image

HD vs SD (Click Image to Expand)

H.264 Video Compression

H.264 is a video compression for digital video recorders to use when reducing video file sizes without losing resolution in the captured footage. H.264 standard compresses the footage so that only half the storage space is used however the same video quality is maintained. Advanced Video Coding (AVC) uses Macroblocks to process information in 16x16px blocks.

E11 Certification Vehicle Approval

The E11 Mark is the British specific Mark that covers equipment/vehicles supplied to the automotive industry. This includes commercial vehicles, construction machinery and general vehicle use and basically means the unit has been approved by ECU compliance and quality control regulations. ()

Timespace PCLink Suite

The PCLink Suite allows users to review footage and blur objects/faces using an inbuilt software tool in the event that footage is used in evidence for courts or policing. The system also offers user-friendly playback and reviewing alongside alarm and motion markers for rapid analysis of footage.

Live view features include multi-camera live video streaming, playback, real-time live map locations of vehicles and watermarking/password protection.

name	16 Channel – DVRV600-16 – Timespace
Storage Media	HDD
Security	Encrypted Storage
Audio Channels	2 Channel
Audio	Yes
Alarm Outputs	4 Outputs
Alarm Inputs	10 inputs
Power Supply	12-48V DC
IR Remote Control	No
Maximum Capacity	4 TB
Storage Capacity	4 TB
Audio/Video (AV)	Video and Audio
Product Type	Digital Video Recorders
Video Format	Proprietary
Video Resolution	1920×1080 (HD 1080)
GPS	Optional
Video Codec	H.264
FPS	200 FPS
Video Channels	16 AHD + 4 IP
e-marked	Yes
Channel Input/Output	IP (HD Internet Protocol), AHD (HD Analogue), Analogue, TVI (Analogue), CVBS (Analogue)
SKU	DVRV600-16
Dimensions	292(l) x 126(w) x 151(h)
