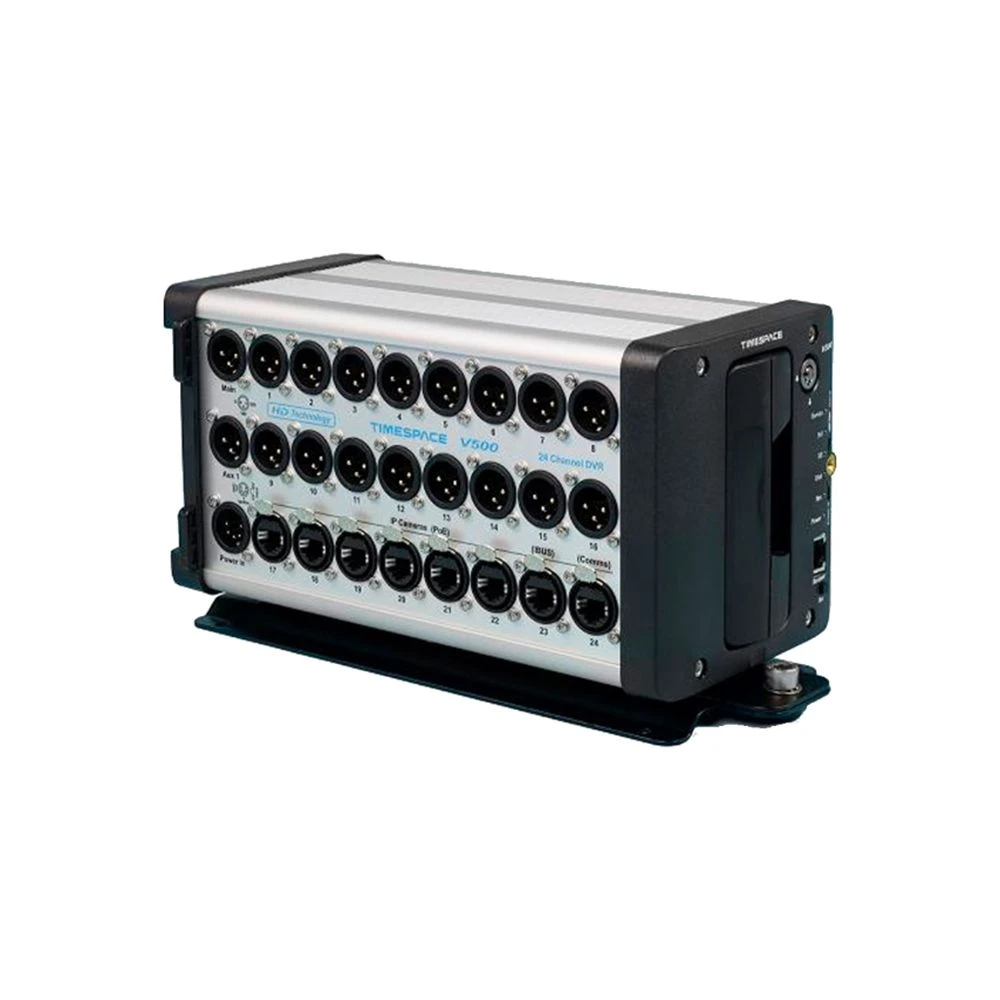

Timespace DVRV500 – 24 Channel Specification

This 24 channel V500 digital video recorder provides customers with sixteen channels of analogue camera inputs and eight POE IP channel inputs of 1080p HD resolution. The digital video recorder provides 200fps and uses H.264 compression to reduce file sizes to a fraction of their original size whilst maintaining video quality. The Timespace products are fully compatible with LANLink and PCLink meaning footage can be easily reviewed and this product is e-marked meaning it can be put onto vehicles with all the correct approvals.

V500 Specification ()
Feature	Capability	Feature	Capability
Video Inputs	8 IP and 16 SD Analogue	Global Image Rate	200 IPS
Audio Inputs	2, Selectable Line or Mic Level	Hard Disk Drive	Up to 4TB
4 Video Outputs	Programmable Main / Aux	Video Standard	PAL/NTSC
PoE (Ethernet)	All 8 IP Channels	Resolution	1080p IP Channel – 720 x 288 Analogue
Video Compression	H.264	Ease of Install	Quick Release Mounting
G-Sensor	3 Axis	Approvals	E-Marked, CE Mark, R118, RoHS, WEEE
IP Rating	IP50	Operating Temperature	-10 to 50°C
Alarm Inputs	10 Selectable 2V – 24V Level	Alarm Outputs	4 (Logic Output)
Dimensions (mm) Including Mounting Plate	292(l) x 132(w) x 143(h)	CAN Engineering Data	Built-in

Benefits of IP Cameras

IP (Internet Protocol) cameras are powered over ethernet (PoE) and offer a far superior camera image quality/resolution to that of any other camera output. IP cameras can also be more cost-effective as they often cover a much wider range than that of an analogue camera. It would need up to four low-resolution analogue cameras to cover the same recording area as a single IP camera.

AHD vs IP (Click Image to Expand)

H.264 Video Compression

H.264 is a video compression for digital video recorders to use when reducing video file sizes without losing resolution in the captured footage. H.264 standard compresses the footage so that only half the storage space is used however the same video quality is maintained. Advanced Video Coding (AVC) uses Macroblocks to process information in 16x16px blocks.

E11 Certification Vehicle Approval

The E11 Mark is the British specific Mark that covers equipment/vehicles supplied to the automotive industry. This includes commercial vehicles, construction machinery and general vehicle use and basically means the unit has been approved by ECU compliance and quality control regulations. ()

Timespace PCLink Suite

The PCLink Suite allows users to review footage and blur objects/faces using an inbuilt software tool in the event that footage is used in evidence for courts or policing. The system also offers user-friendly playback and reviewing alongside alarm and motion markers for rapid analysis of footage.

Live view features include multi-camera live video streaming, playback, real-time live map locations of vehicles and watermarking/password protection.

name	24 Channel – DVRV500-24 – Timespace
Storage Capacity	2 TB
Dimensions	292(l) x 132(w) x 143(h)
Security	Encrypted Storage, Password Protection (Settings)
Audio Channels	2 Channel
Audio	Yes
Alarm Outputs	4 Outputs
Alarm Inputs	10 inputs
IR Remote Control	No
Maximum Capacity	2 TB
Storage Media	HDD
Product Type	Digital Video Recorders
Audio/Video (AV)	Video and Audio
Video Resolution	720×288
GPS	Optional
Video Codec	H.264
FPS	200 FPS
Video Channels	24
e-marked	Yes
Channel Input/Output	IP (HD Internet Protocol), Analogue, Hybrid (Analogue / IP)
SKU	DVRV500-24
Built in	GPS, 4G, 3G, Wi-Fi
