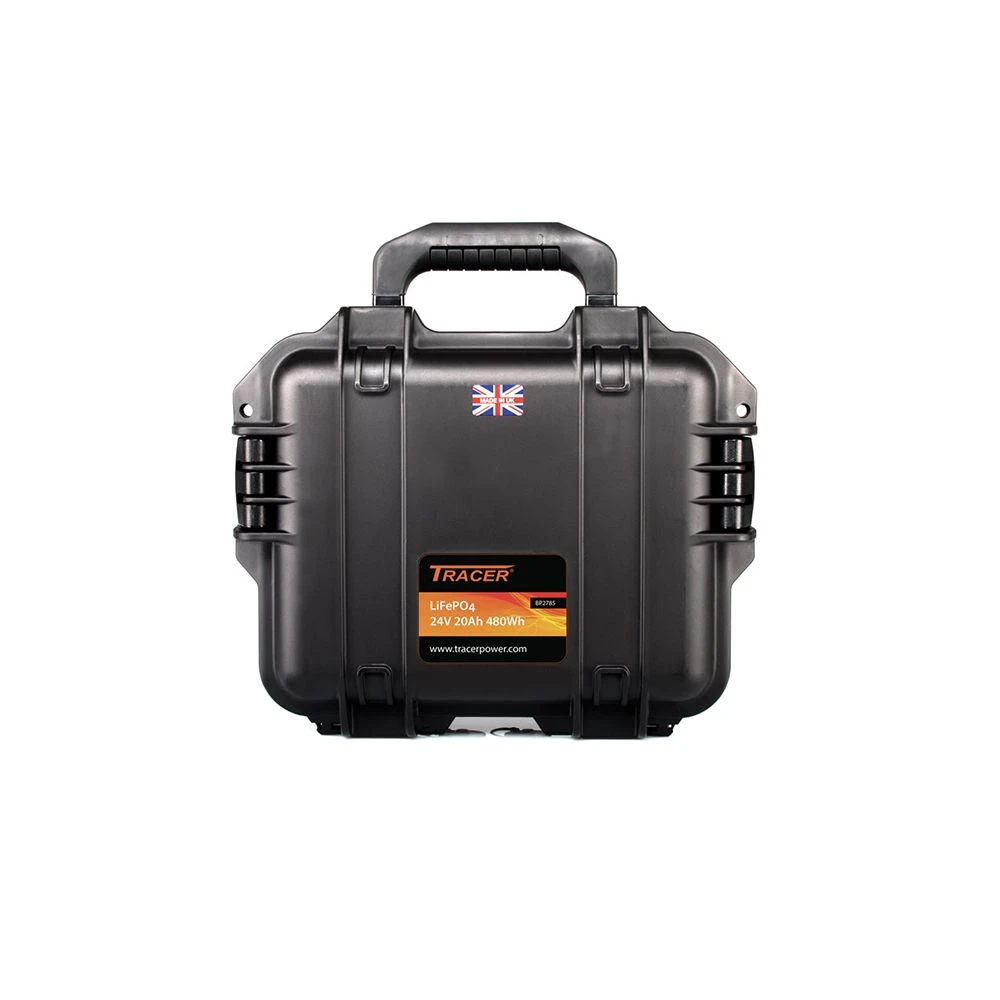

24V 20Ah – RDBATLIFE-PO-020-24 – Tracer Peli Case
Original price was: $392.00.$95.99Current price is: $95.99.
- Top Quality Products
- Fast, friendly, always here to help.
- Expertly Sourced, Quality Guaranteed
- Protect Your Wallet with Safe Payments
IP67 Waterproof Peliâ„¢ Case Kit using Amphenol circular MIL Spec connector system.
Professional power packs housed within a protective Peliâ„¢ Case. These battery packs are the portable solution, easy to carry and install.
A robust IP67 Waterproof standard case has been pre wired. Built using Amphenol Circular MIL Spec Connector system offering full IP67 protection. The batteries use prismatic cells that create the lightest weight construction. Supplied with built-in internal LED Fuel gauge and charger.
Fuel Gauge
With an internal fuel gauge you can check the power level remaining in the battery. A touch of the button shows how much energy remains and whether you need to recharge.
Internal cushioning protects the battery and its components ensuring you can deliver power in the most demanding of environments.
Two Amphenol Connections
Each Peliâ„¢ Case is equipped with two Amphenol connections, each offering up to 20A continuous output at ambient temperature up to 25°C. A combined output of 30A can be achieved if the two connectors are used with a Twin Amphenol Output Lead (TR8185). Please note – if both sockets are being used as output connections the total current must not exceed 30A.
As there are two connections, one can be used for output while the other can be used for charging, effectively making the battery an Uninterruptible Power Supply (UPS). Please note that when using as a UPS the output current must not exceed the charger’s current.
Safety Features
Integrated Electronic ‘Battery Management System’ (BMS) provides the following protection:
- Overcharge & over-discharge protection
- Thermal protection
- Over current protection
- Short circuit protection
- Type:Â Lithium Iron Phosphate (LiFePO4)
- Nominal Voltage: 24V
- Capacity: 20Ah
- Charge Time: 5 – 7 hrs
- Charger: 5A Charger
- Life: 1400+ Cycles

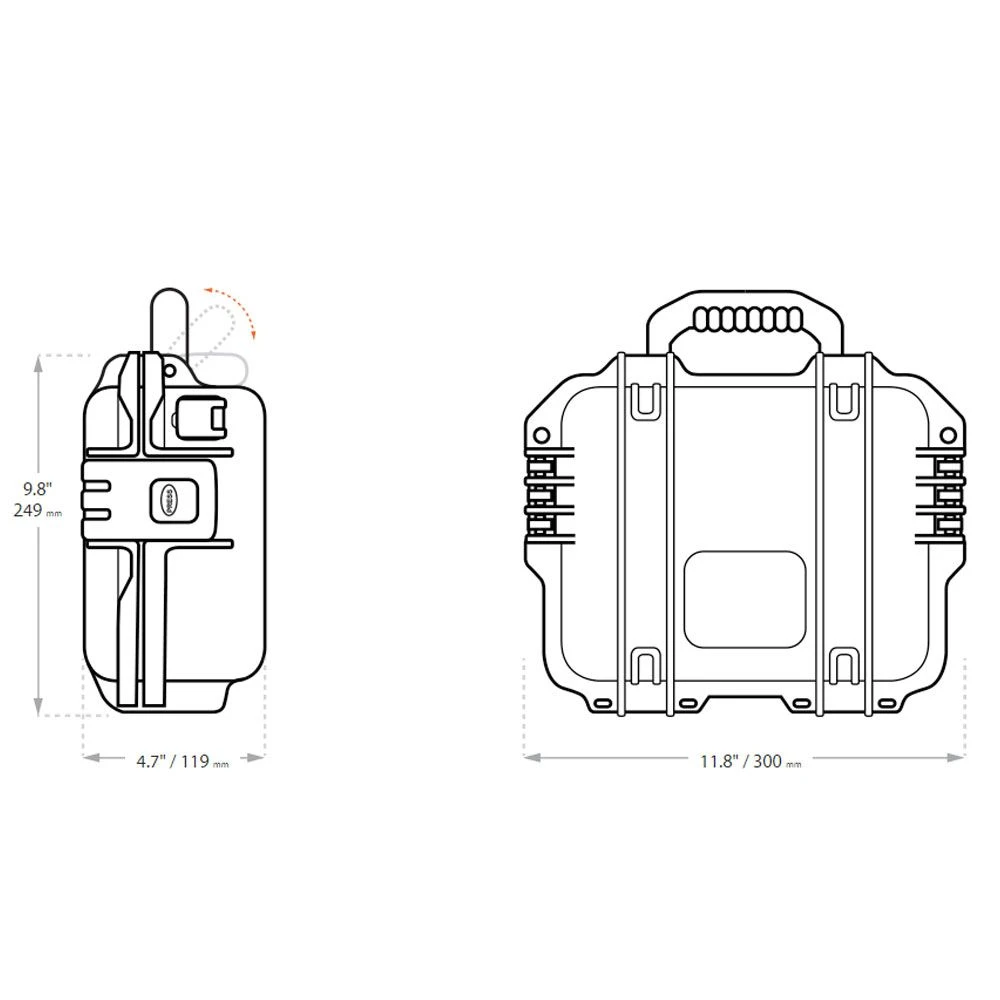

- Dimensions (“): 11.8 x 9.8 x 4.7
- Dimensions (mm): 300 x 249 x 119
- Weight (lb): 13.2
- Weight (kg): 6
- Watt-Hour (Wh): 480Wh
- Max Continuous Discharge Current: 30A
- Max Peak Current (for 10mS): 60A
- Discharge Cut-off Voltage: 16V
- Charging Voltage: 29.2V
- Temperature Range (charging): 0°C — 40°C
- Temperature Range (discharging): -10°C — 60°C
- Self Discharge: <0.5% per day
| name | 24V 20Ah – RDBATLIFE-PO-020-24 – Tracer Peli Case |
|---|---|
| SKU | RDBATLIFE-PO-020-24 |
| Dimensions | 215 x 150 x 2100 |
| Fuel Guage | Yes |
| Amp | 20Ah |
| Chemistry | Lithium Iron Phosphate |
