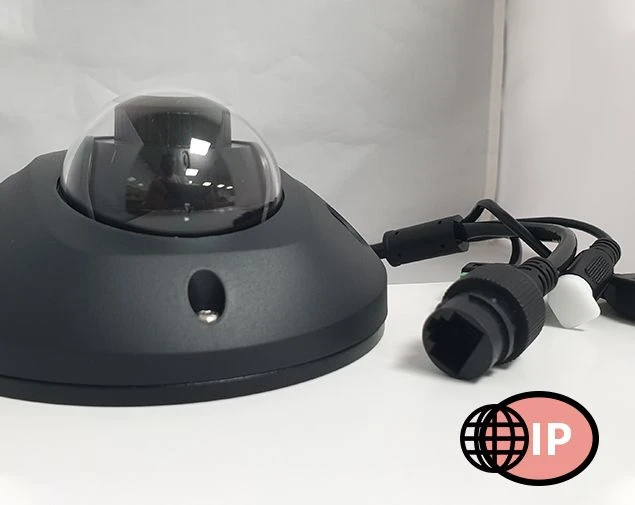

4MP Powered by DarkFighter Fixed Mini Dome Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
-W: Wi-Fi connection
-S: build-in microphone, audio and alarm interface available
Water and dust resistant (IP66) and vandal proof (IK08)
Mini size suitable for limited space

---



Compression Standard

H.264+Main stream supports

H.265+Main stream supports

---



General

Firmware Version: V5.5.80
Reset: Yes
Startup And Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply: 12 VDC ± 25%, PoE (802.3af)
Power Consumption And Current: 12 VDC, 0.7 A, max. 8.5 W, Φ 5.5mm coaxial plug power,PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 10 W
Material: Front cover: plastic, Bottom base: metal
Dimensions: Φ110 mm × 56.4 mm (Φ4.3″ × 2.2″)
Weight: Camera: Approx. 400 g (0.9 lb.)
Interface Protection: IP66

---



Wi-Fi

Frequency: 2.412 GHz to 2.4835 GHz
Channel Bandwidth: 20M/40M
Security: WPA, WPA2
Transfer Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
Wireless Range: 50 m ,(The performance varies based on actual environment)
Wireless Standards: IEEE 802.11b/g/n

---



Video

Max. Resolution: 2688 × 1520
Main Stream: 50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream: 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240), 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream: 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288), 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression: Main stream: H.265/H.264, Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
H.264 Type: Main Profile/High Profile
H.265 Type: Main Profile
Video Bit Rate: 32 Kbps to 16Mbps
SVC: H.264 and H.265 encoding support



---



Camera

Image Sensor: 1/2.5″ Progressive Scan CMOS
Min. Illumination: Color: 0.008 Lux @ (F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed: 1/3 s to 1/100,000 s
Slow Shutter: Yes
Day &Night: IR Cut Filter
Wide Dynamic Range: 120dB
Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°
DNR: 3D DNR



---




Image Enhancement: BLC/3D DNR/HLC
Image Setting: Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night: SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)



---



Lens

Lens: 2.8, 4, 6 mm
Auto-Iris: No
Aperture: F1.6
Focus: Fixed
FOV: 2.8 mm: Horizontal field of view: 109°, Vertical field of view: 60°, Diagonal field of view: 131°,4 mm: Horizontal field of view: 88°, Vertical field of view: 46°, Diagonal field of view: 105°,6 mm: Horizontal field of view: 53°, Vertical field of view: 30°, Diagonal field of view: 61°
Lens Mount: M12

---



Smart Feature-Set

Face Detection: Yes
Exception Detection: Scene change detection

---



Network

Network Storage: Support MicroSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
APIONVIF: (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View: Up to 6 channels
User/Host: Up to 32 users,3 levels: Administrator, Operator and User
Client: iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser: Plug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
Alarm Trigger: Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login



---



Audio

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Environment Noise Filtering: Yes
Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio2 Inputs: line in or mic in (built-in microphone), 1 Output: line out, mono sound, terminal block



---



Interface

Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port
Alarm1 Input: Alarm in, 1 Output: Alarm out, terminal block
On-Board Storage: Built-in Micro SD/SDHC/SDXC slot, up to 128G



---



Illuminator

IR Range: Up to 10 m
Wavelength: 850nm



---



Approval

Impact Protection: IK8

---

Smart Feature-Set

Behavior Analysis: Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Region Of Interest: Support 1 fixed region for main stream and sub-stream separately
