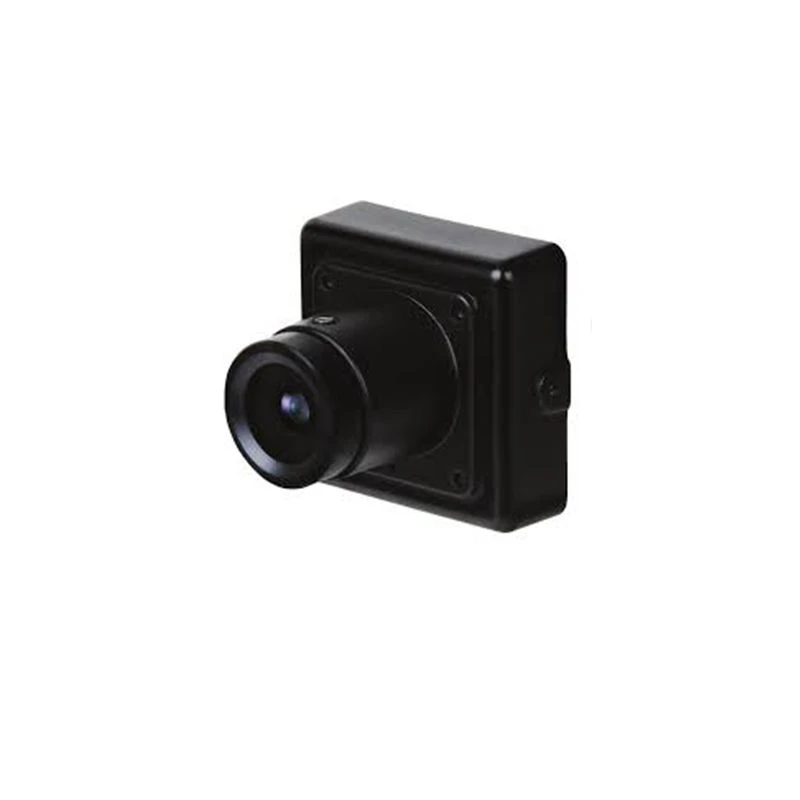

KT&C KPC-V700PUB – Analogue Camera Specification

This board analogue camera uses a wide dynamic range (WDR) to alter the image when capturing in high/low light situations making the footage better quality. The V700PUB uses digital image stabilization to stabilize images affected by shaking, blacklight compensation and 2DNR.

Digital Image Stabilization (DIS)

Digital Image Stabilization (DIS) uses the motion detection core to stabilize the image from shaking due to external vibrations like oscillation and wind. It uses pixels outside the border of the visible frame to provide a buffer for the motion.

Backlight Compensation (BLC)

Backlight Compensation (BLC) technology works by reducing the dynamic range of the entire image while retaining the overall contrast. By compensating for unbalanced in a scene, the detail is restored throughout the field of view so as to provide better visibility to identify an object of interest.

True Day/Night (TDN)

True Day/Night feature can be used for precise colour reproduction. With a built-in dual filter system, known as the Infrared Cut filter Removal (ICR) mechanism, the infrared cut filter can be used at day time, or in bright lighting conditions, to provide enhanced image in full-colour. At night time, or in harsh lighting conditions, it will be removed for greater light sensitivity in monochrome mode.

Adaptive Tone Reproduction (ATR)

Adaptive Tone Reproduction (ATR) is a function that provides gradation compensation to improve the contrast of subjects whose gradation has been lost. ATR function improves the visibility of the entire picture based on luminance information.

name	KPC-V700PUB – KT&C – Analogue Camera
Day & Night Function	Electronic D/N
Lens Size	3.6 mm
S/N	＞50 dB (3DNR On, AGC Off)
Day & Night	Electronic D/N
Camera Shape	Board
Dimensions	30 x 30mm
Power Consumption	12VDC 150mA
Storage Temperature	-20°C~60°C (-4°F~140°F)
Operating Temperature	-15°C~50°C (5°F~122°F)
Output type	CVBS(1.0Vp-p Composite 75Ω) NTSC/PAL
AGC	6dB – 44.8dB
SKU	KPC-V700PUB
Dynamic Range	3DNR – D-WDR
White Balance	ATW / Push / User1 / User2 / Manual / Push lock
Focal Length	F2.0
Lens Type	Fixed
Maximum Resolution	1080p@30fps
Number of effective pixels	NTSC: 976(H) x 494(V) / PAL: 976(H) x 582(V)
Built-in Image Sensor	1/3" 960H SONY Double Scan Super HAD CCD Ⅱ
Colour	Black
Channel Input/Output	CVBS (Analogue)
Motion Detection	4 Zones
