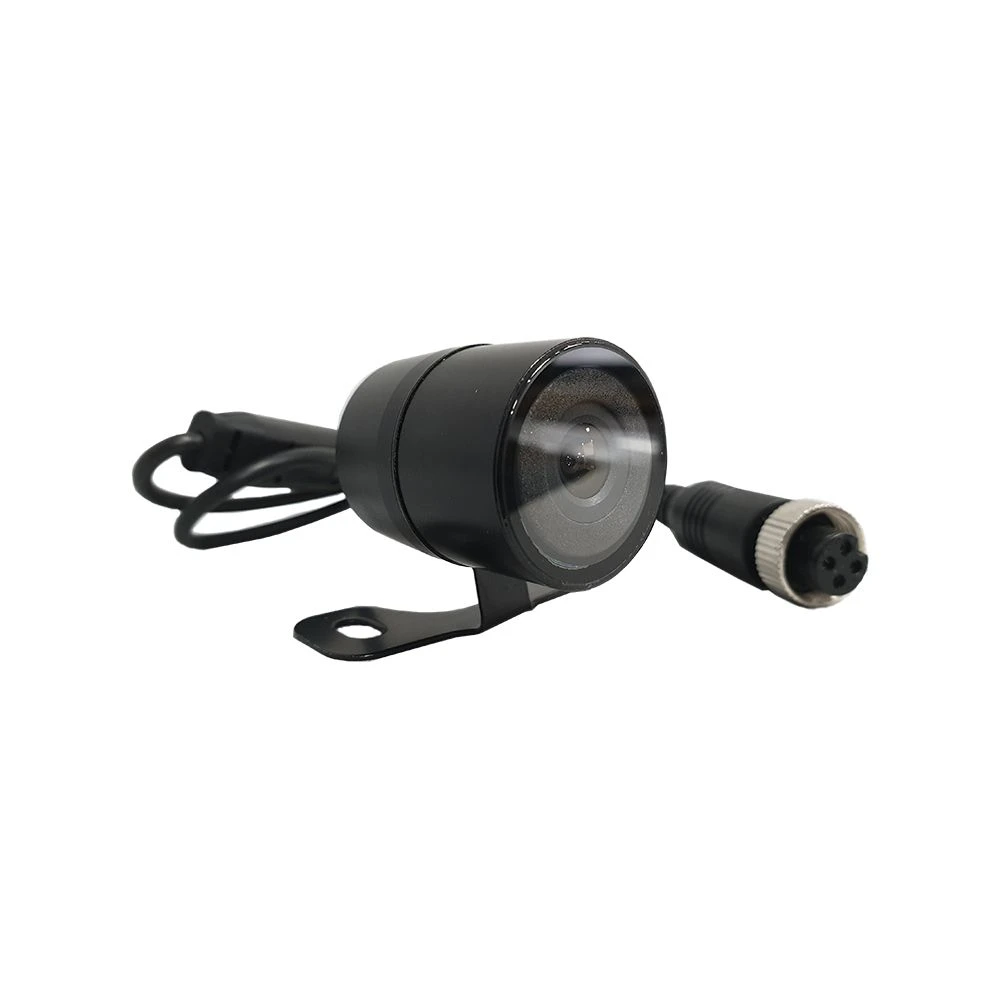

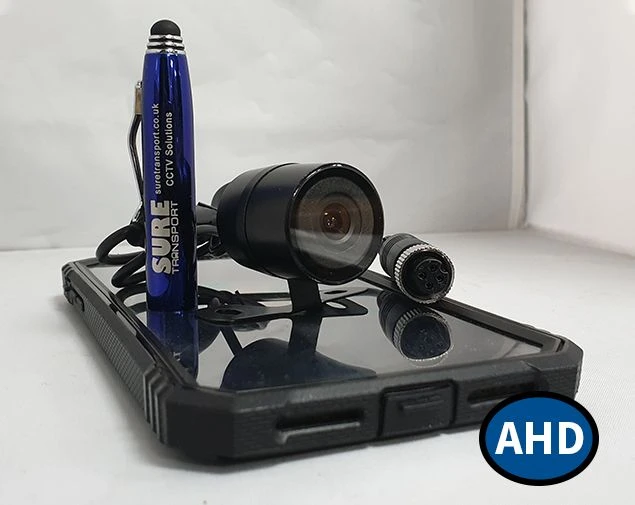

Vehicle Camera – ST815-720P – Key Features

1/4” CMOS Sensor AR0141
1 MP
Picture Elements: 1280(H)*720(V)
Pick up Device: 1/4” CMOS sensor AR0141
TV System: PAL
Effective pixels: 1.0M pixels
S/N Ratio More than 48 dB, (AGC Off)
Auto Gain Control (AGC): Auto
White Balance: Auto
Electronic Shutter: Auto
Back Light Compensation: Auto
Day/Night(B/W): N/A
Infrared LED: N/A
Infrared LED Range: N/A
Electronic Shutter: AUTO/ 1/50(1/60)-1/100,000sec
Video Output 1 Vp-p, 75Ocomposite 4 ways Din jack x1
Audio Output N/A
Mirror N/A
Exterior Focus Adjustment N/A
Easy installation Mechanical Design



---

Lens

Tilt adjustment available -52 – +52
Lens Mount M12XP0.5mm Thread
Pan Adjusting N/A
Tilt Adjusting -52°~+52°
Lens F2.3mm Standard Lens

---

Power

Power consumption 70mA
Power Supply 12V DC ±10%



---

General

Dimensions (ø X H) 24.4x36mm
Net Weight 96g
Weatherproof/Water Proof IP67
Operating Temperature -10°C to +50°C
