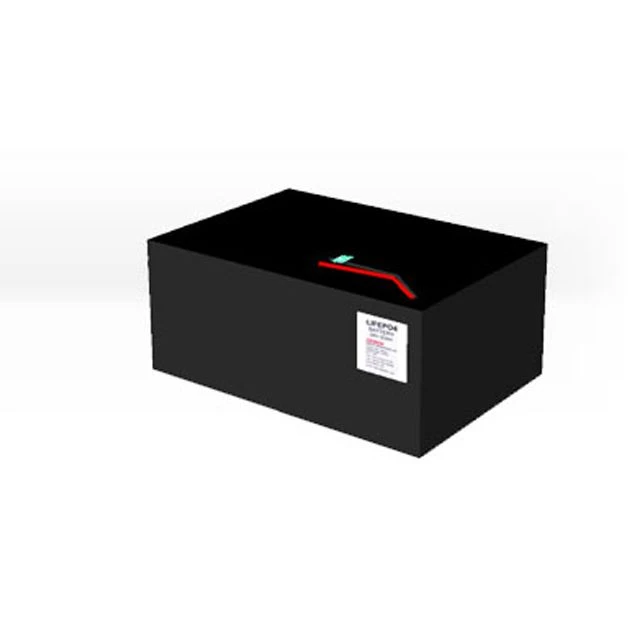

Tracer BATLIFE-PO4-020-24 20 Ah Lithium Phosphate Battery – 24V

Lithium Phosphate Battery

Flat Discharge – Brighter for longer
Lithium polymer technology gives a very flat discharge curve which means sustained power to the end of the cycle. If you are powering lights they will remain brighter for longer, giving you sustained performance.

More than1400 Cycles
This is based on charging at a standard rate with a discharge from full capacity to 8V at 0.5C A. Rest time of 30 minutes between charge and discharge.

Certified Safe
All Tracer lithium batteries conform to the standard UN 38.3 transportation test. Our battery packs have been through a rigorous testing procedure by UN certified inspectors. You should NEVER handle a non-certified lithium battery pack.

Protection
The battery pack is protected against over charge and discharge, there is also short circuit protection.

• Type: Lithium Iron Phosphate (LiFePO4)
• Voltage: 24V
• Capacity: 20Ah
• Charge Time: 5 – 7 hrs
• Life: 1400+ Cycles
• Dimensions (“): 8.5 x 5.9 x 3.9
• Dimensions (mm): 216 x 150 x 100
• Weight (oz): 162.3
• Weight (grams): 4600
• Max Continuous Discharge Current: 10A
• Max Peak Current (for 10mS): 30A
• Nominal Voltage: 25.6V
• Discharge Cut-off Voltage: 16V
• Charging Voltage: 29.2V
• Temperature Range (charging): 0°C – 40°C
• Temperature Range (discharging): -10°C – 60°C
• Self Discharge: <0.5% per day
