Videcon VB6290 AHD – Analogue Camera Specification

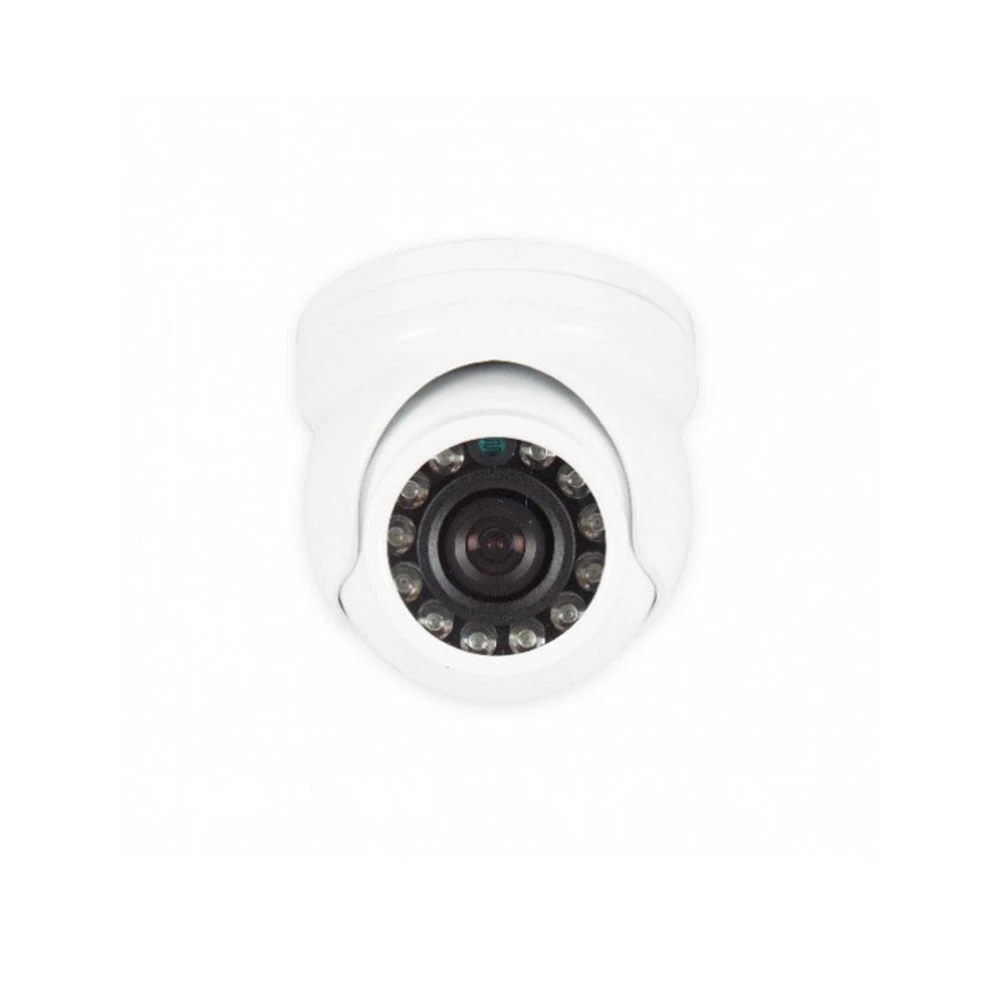

This mini, vandal resistant camera from Videcon offers a discreet, high performance solution for a variety of short range applications, including vehicles, bars and nightclubs. Available in a choice of black, white or grey casing, this unit features 12 integrated IR LEDs with a range of up to 20 metres. Additional features include 360º “Eyeball adjustment” to enable free rotation of the 3.6mm or 2.8mm built in fixed lens.

Four in One Solution

Don’t be tied down to any single platform. With 4-in-1 cameras, you have the freedom to install whichever CCTV platform you like. Whether you install AHD, TVI, CVI or traditional analogue systems.

HD Resolution Capability

HD refers to high definition or 720p/1080p resolution, 1080p is known as Full HD. This resolution is a significant step up from 480p which can be seen in the image (on the right).

The first figure (1920) refers to horizontal pixels and the second figure (1080) denotes vertical resolution. The simple difference between HD and SD images is the number of pixels contained in the image

HD vs SD (Click Image to Expand)

2DNR Digital Noise Reduction (DNR)

Digital Noise Reduction (DNR) technology is crucial for a surveillance camera. 2DNR works by analyzing individual frames of video, identifying algorithmically and correcting those pixels that likely represent noise.

True Day/Night (TDN)

True Day/Night feature can be used for precise colour reproduction. With a built-in dual filter system, known as the Infrared Cut filter Removal (ICR) mechanism, the infrared cut filter can be used at day time, or in bright lighting conditions, to provide enhanced image in full-colour. At night time, or in harsh lighting conditions, it will be removed for greater light sensitivity in monochrome mode.

Product Type	Cameras
Dynamic Range	Wide Dynamic Range
IR Remote Control	No
Storage Temperature	-30°C to 60°C

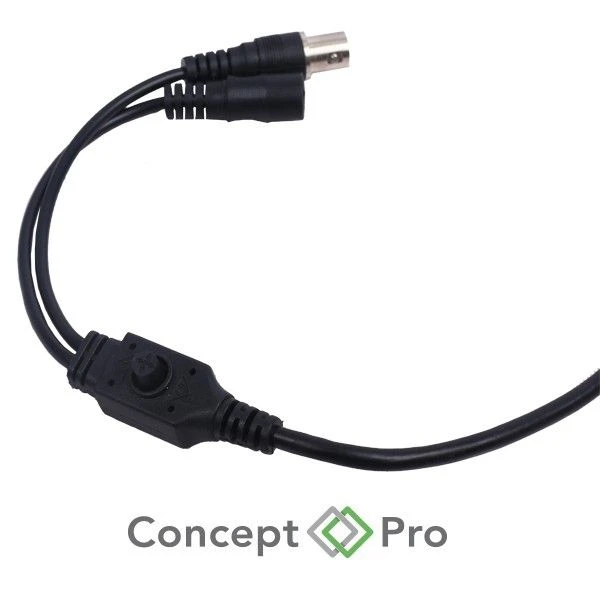

Output type	1.0Vpp, 75Ω BNC
Operating Temperature	-10°C to 55°C
Dimensions	60mm(DIA.) X 55mm(H)
FPS	25 FPS
Video Resolution	1920×1080 (HD 1080)
Maximum Resolution	1080P
Day & Night	True Day/Night ICR – True Colour/Mono with ICR
White Balance	Auto / Manual
name	VB6290 AHD – 3.6mm – Videcon
Lens Size	3.6 mm
Lens Type	Fixed
S/N	≥50dB
Infra-Red (IR)	Yes
Scanning System	Progressive
Built-in Image Sensor	1/2.8” CMOS Sensor
e-marked	No
Camera Shape	Dome
SKU	VB6290-AHD-W3.6
Power Consumption	12vDC
